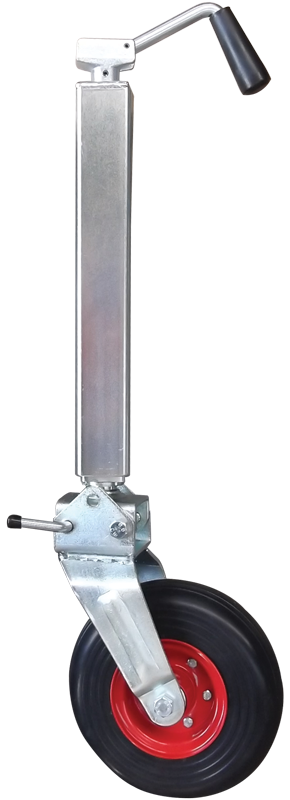

Jack wheel with foldable fork for an optimal free height on the trailer
Item no.: 010-06001-1
Spindle stroke: 200 mm
Outer tube: 60x60 mm
Inner tube: 50x50 mm
Spindle: TR22x5 mm
Surface treatment: blue electro galvanised passivated
Consoles: KF1-01, KF2-01, KF4-01 and KF5-01
Lock for handle: LF1-01 (se under accessories below)
Wheel: solid rubber wheel ø260x85 mm
Capacity: max. 275 kgs @ 16 km/h
Spare parts drawing SHOF1-01
Where there is need for a durable tires and puncture resistant drive, solid rubber wheels should be used. Our standard solid wheels are of a relatively hard rubber composition. We can different types of solid rubber wheels in various compositions. There are tires with a flat or almost flat surface which ensure a gentle pressure in the driving substrate. There are also durable tires with a soft core, for a more comfortable ride. The last mentioned is the most expensive.
Browse wheels here: WHEELS
The jack wheel is shown with a 10” fork, but is also available with forks in sizes: 8", 10 ", 12", 13" and even also in 16"
Please contact us to be advised about the possibilities.
Shall the support wheel be welded onto the machine and / or must be the same color as the machine, then select the support wheel with red rapitix primer coating.
# All our jack wheels are fitted with spindles with roller thread which is 100 % greased during the assembling!
Send an inquiry on jack wheels
