ST4-01 Jack leg for light use for trailers
Type: ST4-01
Item no.: 001-04801-1
Spindle stroke: 200 mm
Adjustment in console: 280 mm
Outer tube: Ø48 mm
Inner tube: Ø42 mm
Foot plate: Ø110 mm
Spindle: TR20x4 mm
Surface treatment: blue electro galvanised passivated

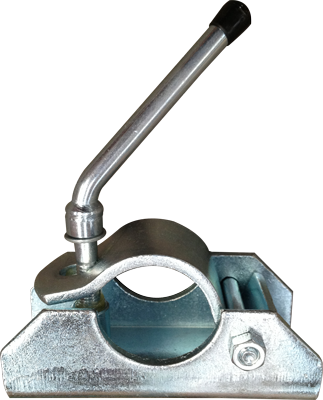

Console: KL1
Load capacity: 150 kgs
Measure sketch
Spare parts drawing
Send inquiry on jack legs
