Jack wheel with foldable fork for an optimal free height on the trailer
Type: SHOF1-01
Item no.: 011-06001-1
Spindle stroke: 200 mm
Outer tube: 60x60 mm
Inner tube: 50x50 mm
Spindle: TR22x5 mm
Surface treatment: blue electro galvanised passivated
Consoles: KF1-01, KF2-01, KF4-01 and KF5-01
Lock for handle: LF1-01 (shown mounted on photo above)
Wheel: Pneumatic wheel ø260x85 mm
Capacity: max. 275 kgs @ 16 km/h
Measure sketch
Spare parts drawing SHOF1-01
Jack wheels primarily used for winter service in the snow should generally run with pneumatic rubber tires, as they easily release the snow. In addition, it provides a more comfortable ride. Pneumatic wheels have a more cost favorable basis than solid rubber wheels.

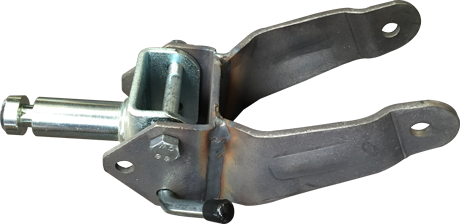

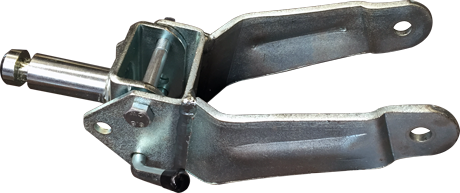

The jack wheel is shown with a 10” fork, but is also available with forks in sizes: 8", 10", 12", 13" and even also in 16"
Please contact us to be advised about the possibilities.
Shall the support wheel be welded onto the machine and / or must be the same color as the machine, then select the support wheel with red Rapitix primer coating.
# All our jack wheels are fitted with spindles with roller thread which is 100 % greased during the assembling!
