Strong and durable high quality jack wheel with twin fork wheel.
To be used for example in the field with a softer substrate to avoid the wheels to "dive" in the earth / sand due to the high bearing capacity. For example used on combine head trailers and other land machines.
Other type of combinations of fork and wheels are optional, please contact us for further information of possibilities.
Item no..: 014-06001
Spindle stroke: 200 mm
Outer tube: 60x60 mm
Inner tube: 50x50 mm
Spindle: TR22x5 mm
Surface treatment: Blue electro galvanised passivated

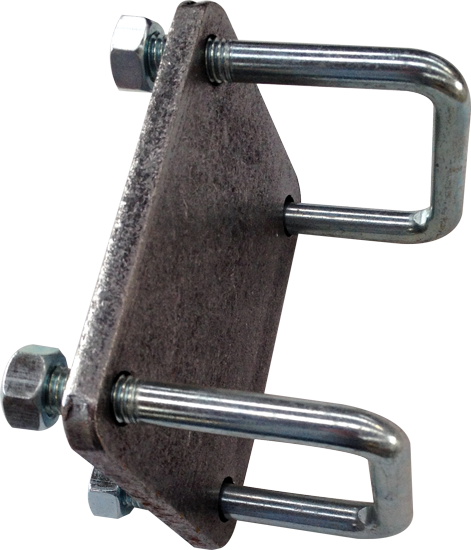

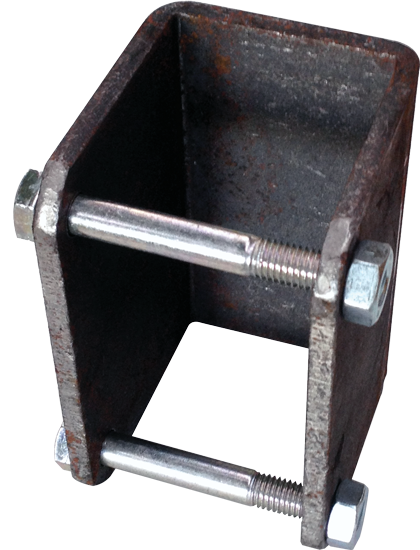

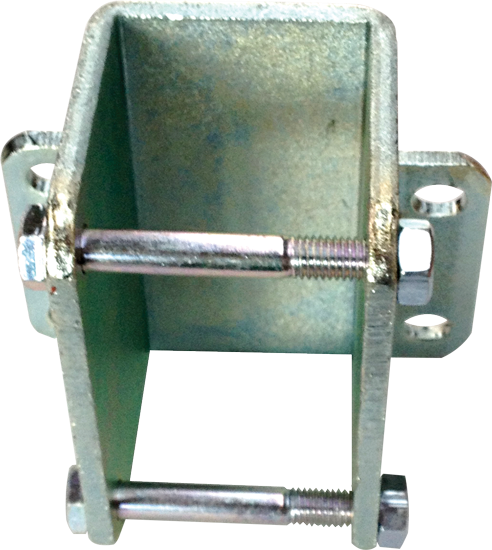

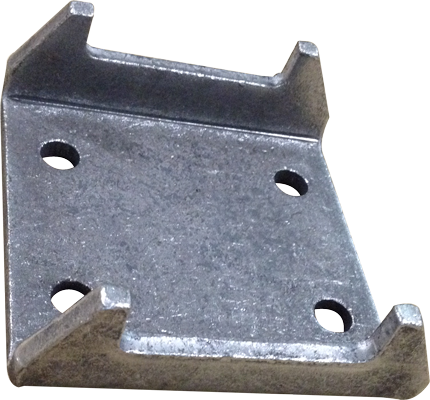

Consoles: KF1, KF2, KF4 and KF5
Lock for handle: LF1
Wheels: 2 pcs solid rubber wheels Ø 260x80 mm
Load capacity: max. 550 kgs @ 16 km/h
Measure sketch
Spare parts drawing

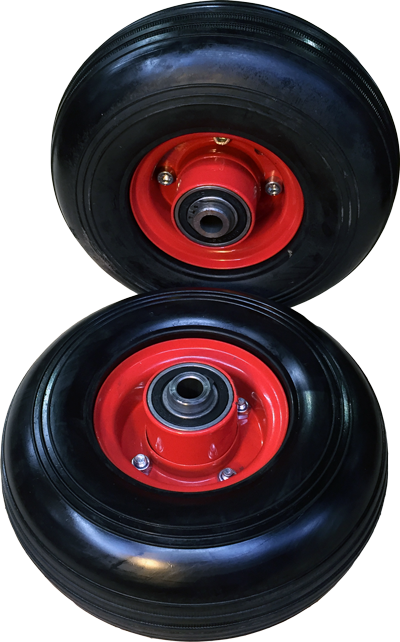

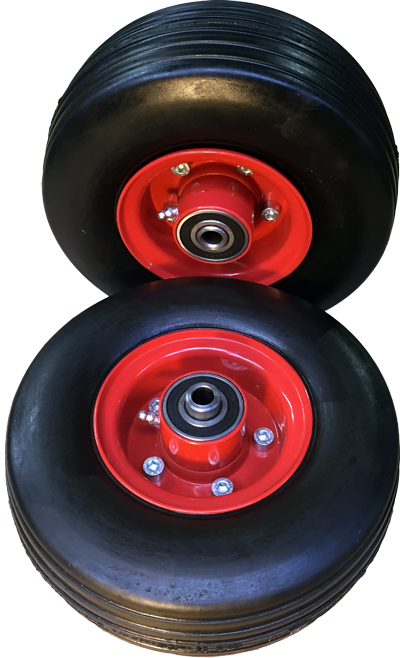

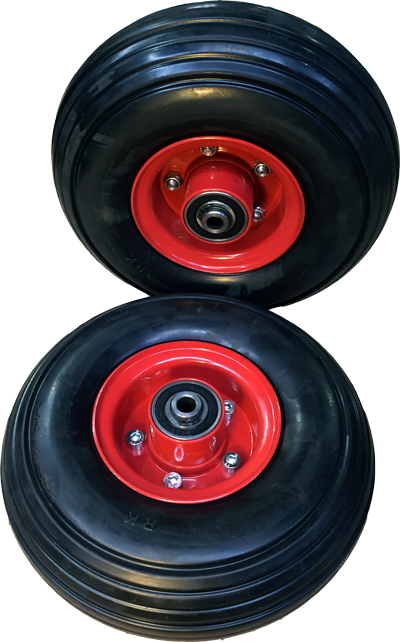

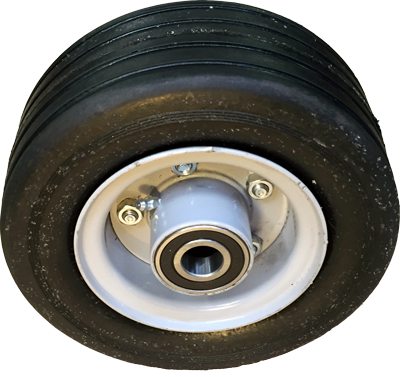

Where there is need for a durable tires and puncture resistant drive, solid rubber wheels should be used. Our standard solid wheels are of a relatively hard rubber composition. We can different types of solid rubber wheels in various compositions. There are tires with a flat or almost flat surface which ensure a gentle pressure in the driving substrate. There are also durable tires with a soft core, for a more comfortable ride. The last mentioned is the most expensive.

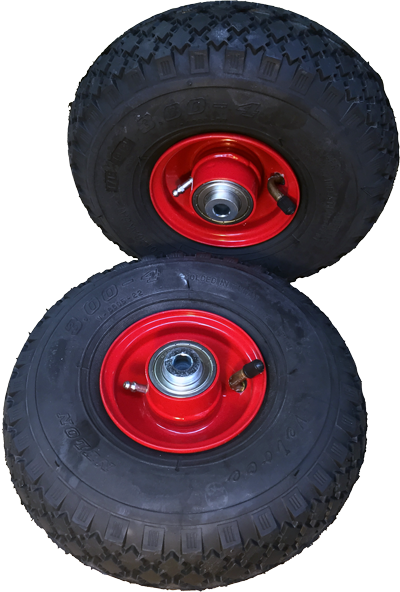

Browse wheels here: WHEELS
The jack wheel is shown with a 10” fork, but is also available with forks in sizes: 8", 10 ", 12", 13" and even also in 16"
Please contact us to be advised about the possibilities.
Shall the support wheel be welded onto the machine and / or must be the same color as the machine, then select the support wheel with red rapitix primer coating.
# All our jack wheels are fitted with spindles with roller thread which is 100 % greased during the assembling!
