Twistable drawbars and hitch eyes

Twistable drawbars forkeded or with hitch from 4 til 20 ton. To be welded on trailers, agricultural trailers etc.

All in a very strong and durable design and quality. Easy to weld on nearly all kind of pole on trailers.

Surface treatment: Rapitix primer coating, oxide red

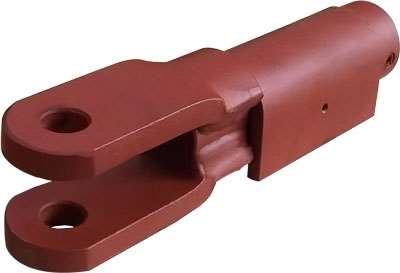

4 ton Fork:​

Max. Pulling force: 4 tons

​​

Axle diameter: Ø 50 mm

Pin hole diameter: Ø 28 mm

Item no.: 050-12801-6

Measure sketch

Spare parts drawing

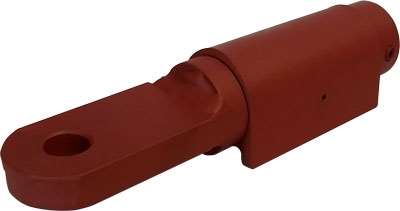

4 ton Flat bar:​

Max pulling force: 4 ton

Axle diameter: Ø 50 mm

Pin hole diameter: Ø28 mm

Item no.: 050-22801-6

Pin hole diameter: Ø33 mm

Item no.: 050-23301-6

Measure sketch

Spare parts drawing 050-22801

Spare parts drawing 050-23301

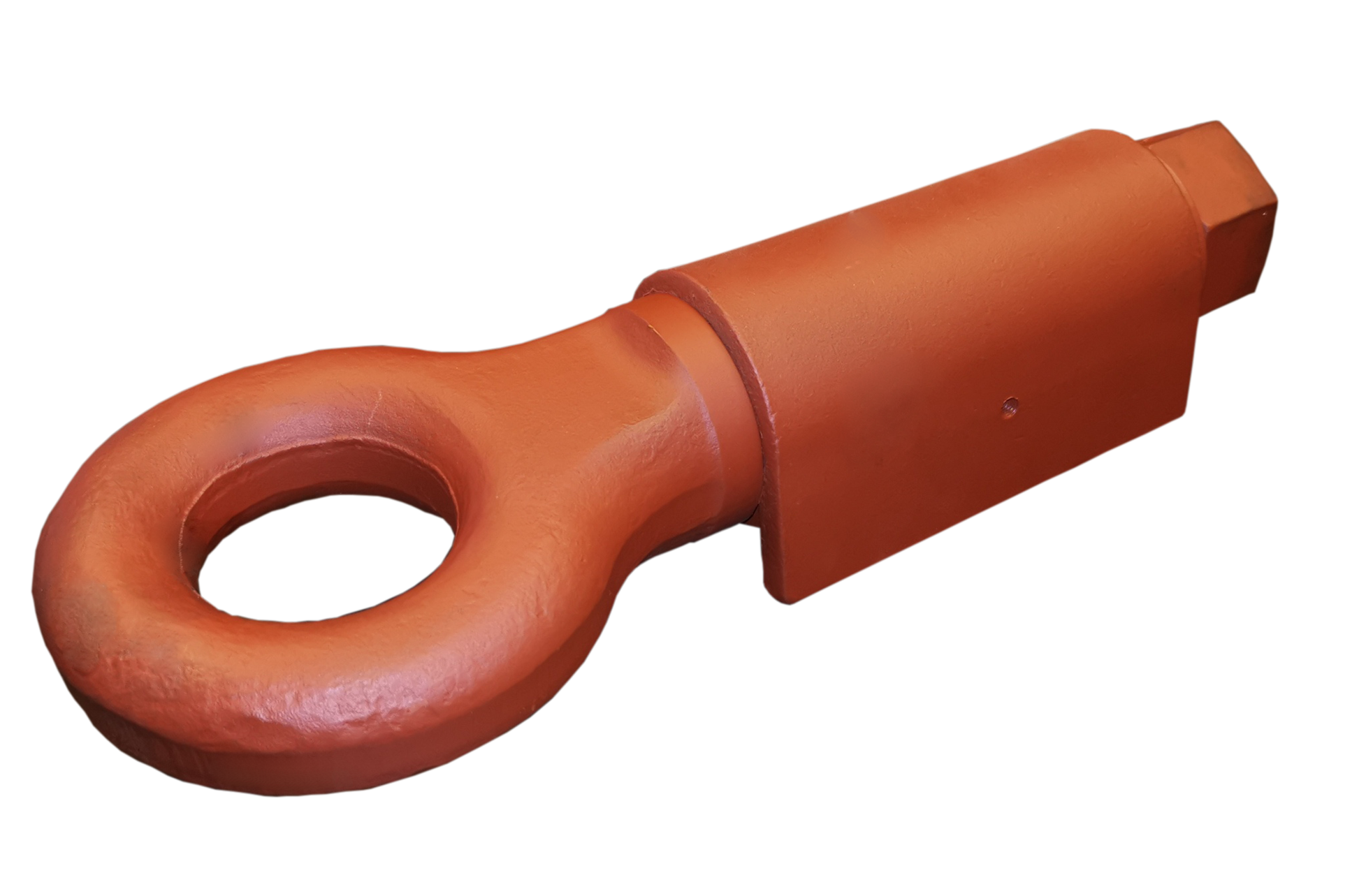

10 ton Eye for hitch hook:​

Max. pulling force: 10 ton

Axle diameter: Ø 45 mm

Pin hole diameter: Ø 50 mm

Item no.: 050-46001-6

Spare parts drawing 050-46001

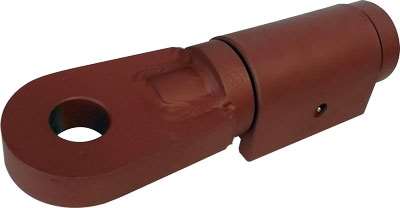

12 tons Flat bar:​

Max. pulling force: 12 ton

Axle diameter: Ø 65 mm

Pin hole diameter: Ø 33 mm (item no.: 050-53301-6)

                           Ø 50 mm (item no.: 050-55001-6)

​​Measure sketch

Spare parts drawing 050-53301

Spare parts drawing 050-55001

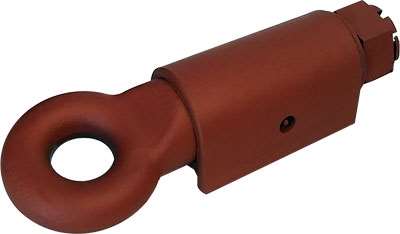

20 tons Eye for hitch hook:​

Max pulling force: 20 ton.

Axle diameter: Ø 65 mm

Outside diameter of eye: Ø 130 mm

Pin hole diameter: Ø 50 mm

Item no.: 050-65503-6

Measure sketch

Spare parts drawing

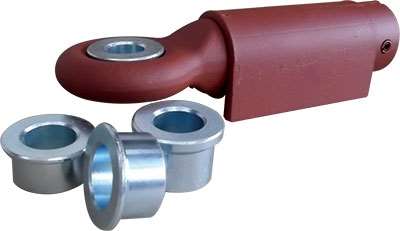

Bushings for drawbars:

For 8 ton:            Item no.

​​Ø 33 mm             230-55001-1

For 20 ton:           Item no.

​Ø35                     230-55003

Ø30                     230-55004

Ø33                     230-55002

Ø38                     ​230-5500
