Durable jack wheel type SHF3-01 for small machines

Strong jack wheel in high quality for small sweepers.

Type: SHF3-01

Item no.: 011-04501-1

Spindle stroke: 100 mm

Ajusting guide: inner tube stamped with scala as standard

Outer tube: 45x45 mm

Inner tube: 35x35 mm

Spindle: TR20x4 mm

Surface treatment: blue electro galvanised passivated

​​Wheel: Pneumatic wheel ø260 x 85 mm

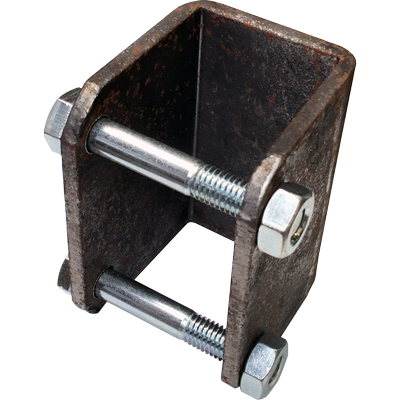

Console: ​KF3-01

Load capacity: max. 275 kgs @ 16 km/h.

Measure sketch

Spare parts drawing SHF3-01

​Jack wheels primarily used for winter service in the snow should generally run with pneumatic rubber tires, as they easily release the snow. In addition, it provides a more comfortable ride. Pneumatic wheels have a more cost favorable basis than solid rubber wheels.

The jack wheel is shown with a 10” fork, but is also available with forks in sizes: 8", 10" and 12"

Please contact us to be advised about the possibilities.

Shall the support wheel be welded onto the machine and / or must be the same color as the machine, then select the support wheel with red Rapitix primer coating.

# All our jack wheels are fitted with spindles with roller thread which is 100 % greased during the assembling!

Send an inquiry on jack wheels

Accessories for SHF3-01​

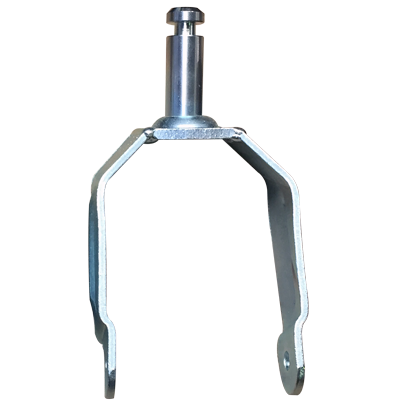

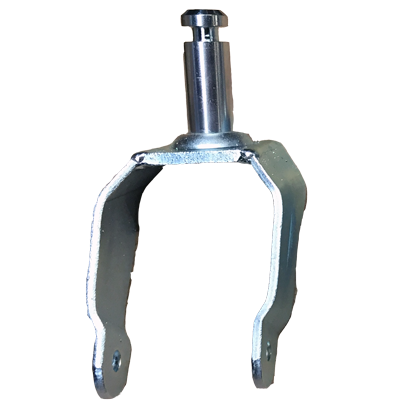

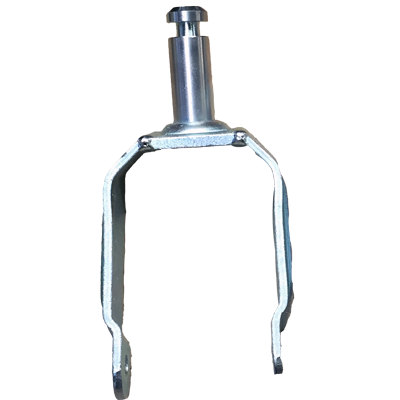

​Alternative standard forks:

Alternative wheels:​
