Jack wheel with foldable wheel fork and solid rubber wheel

Jack wheel type SH2-01

The jack wheel are designed in strong quality for a long service life. As standard SH2-01 are stocked surface treated with the oxide red Rapitix primer. Optional we can deliver in any RAL-colour and furthermore in correct quantities in any galvanized surface treatment. Also a combination of galvanizing and painting is optional.

Should you need a variation of these jack wheels or brackets we are able to offer you at tailor made product.

Please do not hesitate in contacting us, should you have any queries.

Type:

Item no.:

Adjusting stroke:

Outer tubedia.:

Inner tube dia.:

Spindle:

Wheel type:

Wheel dim.:

Surface treatment:

Capacity:

Measure sketch

Spare part drawing

Send an inquiry on jack wheels

SH2-01

010-07001-6

300 mm​

ø70x2,90mm

ø60x4,50mm

TR28x5

Solid rubber wheel with plastic rim

Ø270 x 70 mm

Rapitix primer, oxide red

300 kg.​

Consoles and brackets for SH2-01​:

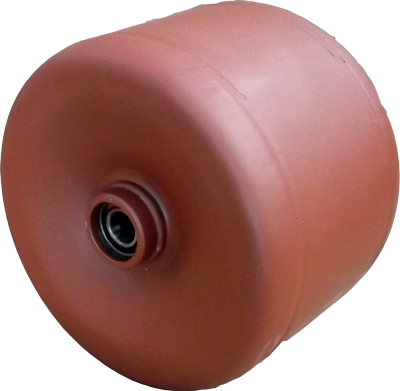

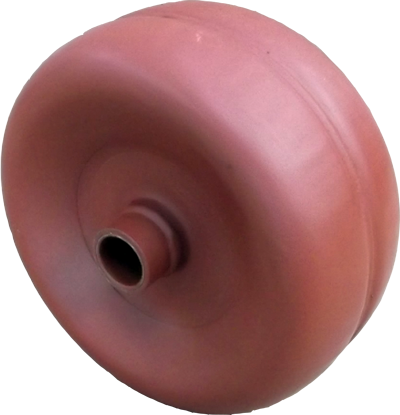

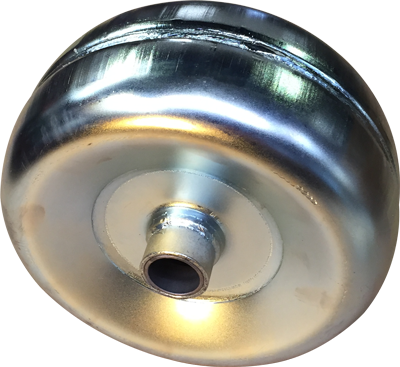

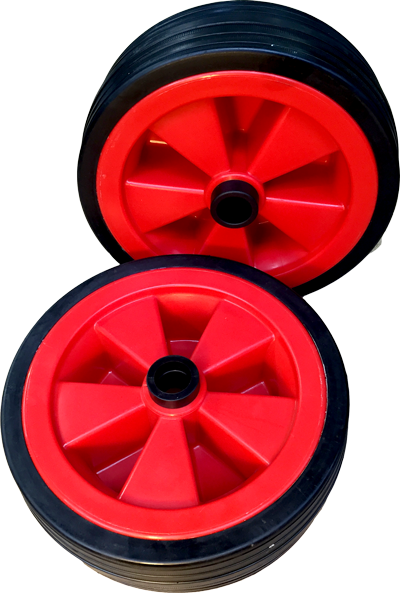

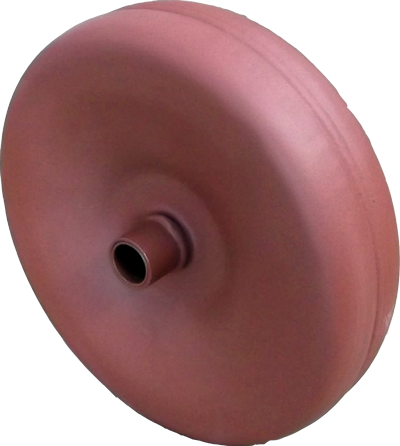

Wheels for SH2-01:​
